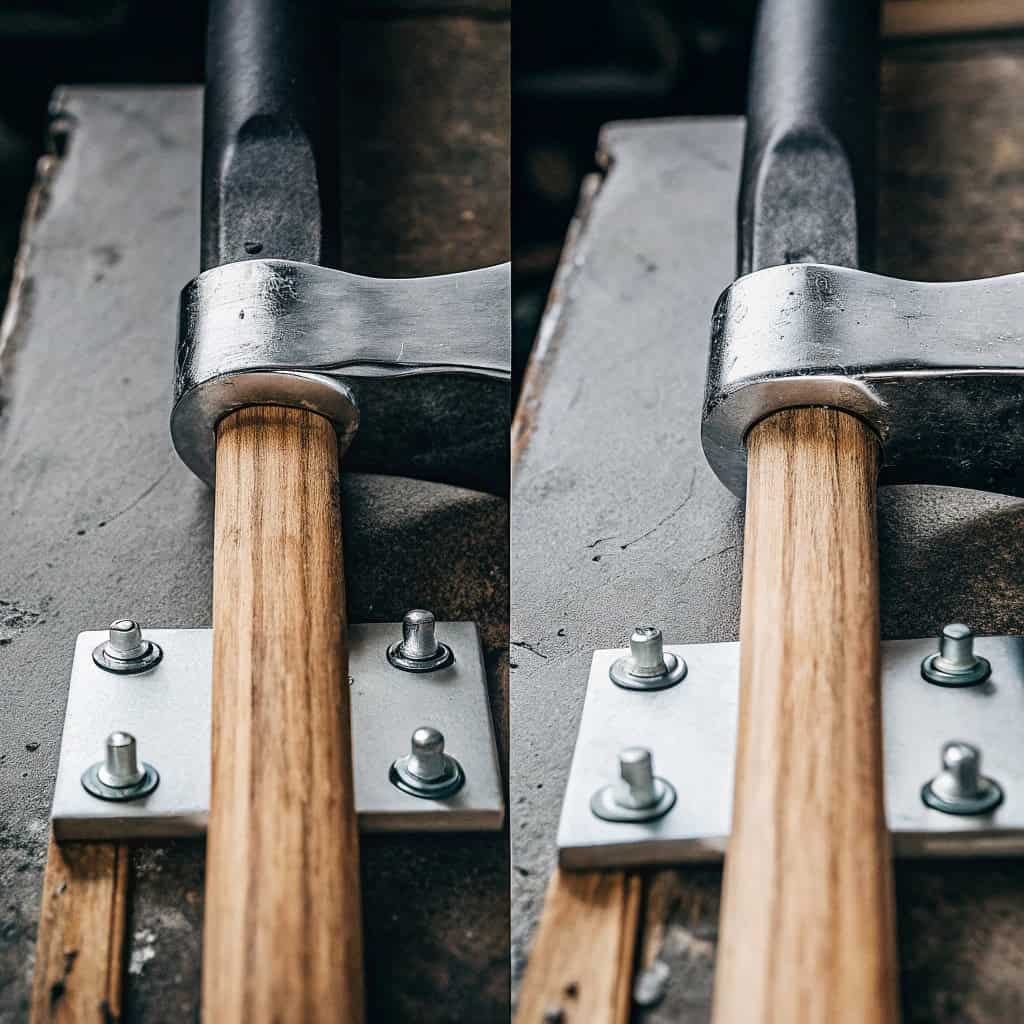

How to Correctly and Safely Install a New Wooden Handle Onto an Axe Head?

Got a new handle for your axe but unsure how to install it properly? An incorrectly fitted handle can fly off during use, creating an extremely dangerous situation. Let's get it right.

Correctly installing involves carefully shaping the handle end (haft) to fit the axe eye snugly, driving the head on securely, and then expanding the wood inside the eye with properly driven wooden and metal wedges.

Replacing an axe handle is a common task for anyone who uses axes regularly, but doing it correctly is crucial for safety. A loose axe head is a serious hazard. As someone who manufactures wooden components at JDW, ensuring parts fit together securely is fundamental to our work. The process requires patience and attention to detail. Let's break down the steps for a safe and secure installation.

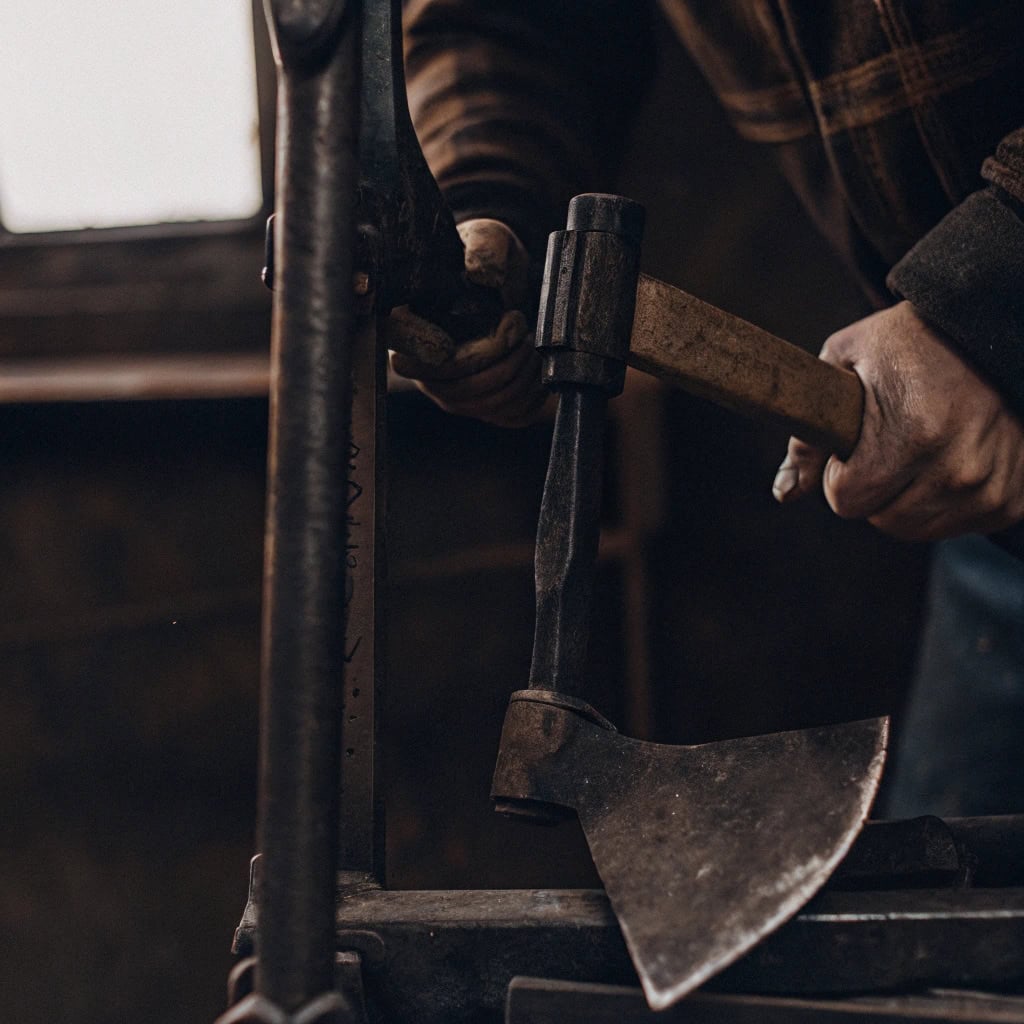

How Do You Attach an Axe Head to a Handle?

Ready to join the head and handle, but worried about getting a tight, lasting fit? Simply sliding the handle in isn't enough; proper fitting and wedging are essential for security.

Attach the head by carefully shaping the handle's top (haft) to match the axe eye, driving the head down firmly onto the handle, and then securing it by driving wooden and metal wedges into the kerf.

Diving Deeper into Attaching the Head

Attaching the axe head securely is the core of the re-handling process. It primarily involves two phases: fitting the handle to the eye and then locking it in place with wedges.

Phase 1: Fitting the Handle (The Haft)

The top part of the handle that goes into the axe head's eye needs to be shaped for a precise, snug fit. Replacement handles usually come slightly oversized.

1. Clean the Eye: Ensure the inside of the axe head's eye is completely clean of old wood, rust, or debris.
2. Initial Fit Check: Gently insert the new handle's top into the eye. Note where it binds or makes contact first. It should only go partway in.
3. Marking High Spots: Use chalk, pencil lead, or specialized marking fluid inside the eye to see where the handle makes contact. Insert the handle, give it a slight twist, and remove it. The marks show the high spots that need wood removal.
4. Careful Wood Removal: Using appropriate tools, remove small amounts of wood only from the marked high spots.
   • Tools: Wood rasp, file, spokeshave, drawknife, or even coarse sandpaper wrapped around a dowel.
   • Technique: Work slowly and evenly. Check the fit frequently. Aim for a very snug fit where the handle slides almost all the way into the eye, leaving about 1/4" to 1/2" (6-12mm) protruding from the top for the wedging process. Ensure the handle remains aligned straight with the head.
   • Caution: Removing too much wood will result in a loose fit, which is difficult to fix and compromises safety. It's better to remove too little and test again than remove too much.

Phase 2: Seating the Head

Once the fit is snug, drive the head fully onto the handle.

1. Method: Turn the axe upside down (handle end pointing down). Hold the axe head loosely on the handle taper. Firmly strike the bottom end of the handle (the knob or swell) straight down onto a very solid surface (e.g., workbench anvil, concrete floor – protect the handle end with scrap wood).
2. Effect: The inertia of the heavier axe head drives it down hard onto the handle's taper, seating it very tightly. Repeat several times until the head won't move down any further and the desired amount of handle protrudes from the top.

Phase 3: Wedging

This is the critical step that locks the head onto the handle. Most replacement handles have a pre-cut slot (kerf) for the main wedge.

1. Wooden Wedge: Apply wood glue (optional but recommended by many) into the kerf. Place the hardwood wedge into the kerf, ensuring it's aligned with the handle grain. Drive the wedge in firmly with a hammer until it is fully seated and won't go further. The goal is to expand the wood tightly against all sides of the eye.
2. Metal Wedge(s): For maximum security, one or two small metal wedges are typically driven in across the wooden wedge (perpendicular or at slight angles). These provide additional outward pressure, especially towards the corners or wider parts of the eye. Drive them until they are firmly seated.
3. Trim: Use a hacksaw to cut the protruding part of the handle and the wedges flush with the top of the axe head eye. Smooth the top with a file or sandpaper.

Attachment Steps Summary

This meticulous process ensures the axe head is mechanically locked onto the handle, providing a safe and durable connection.

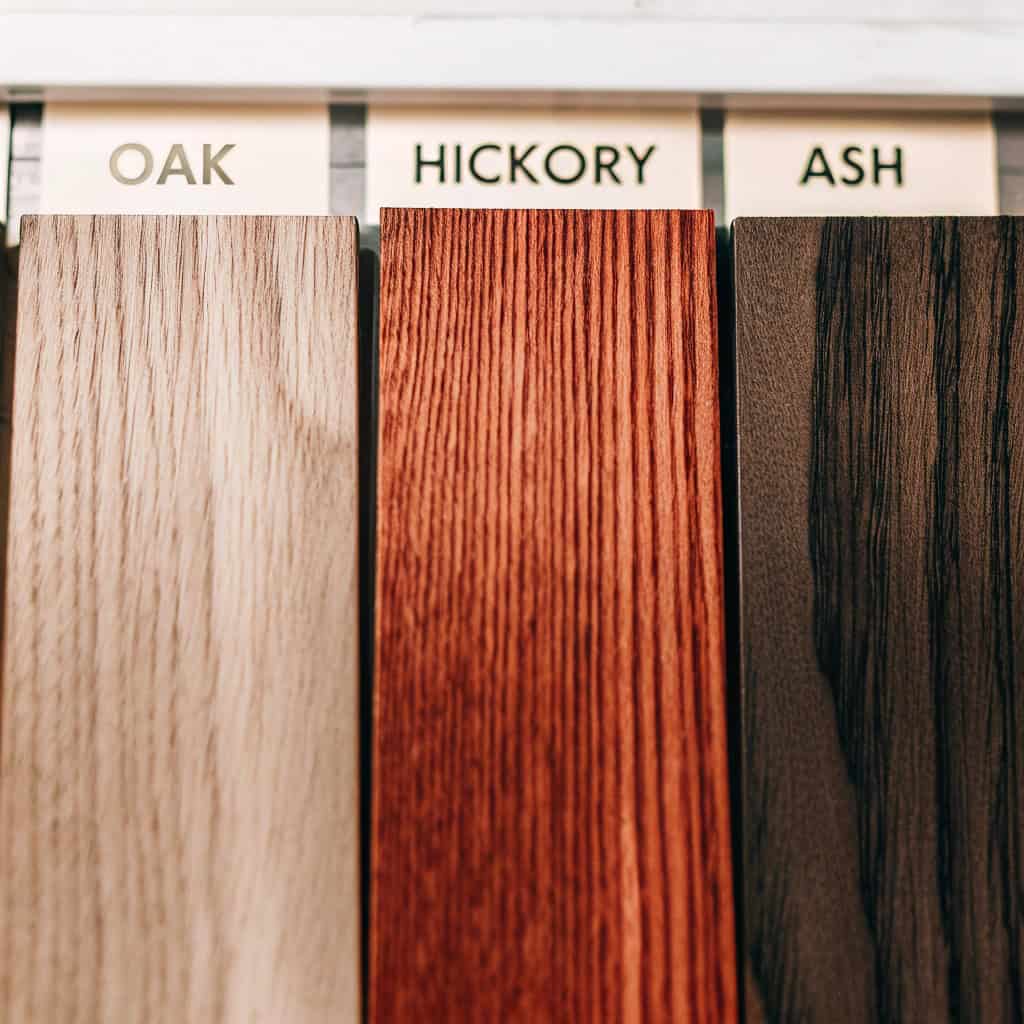

What Kind of Wood is Best for an Axe Handle?

Choosing the wrong wood for an axe handle is a recipe for disaster. Soft woods break easily, while overly stiff woods transmit painful shock, leading to fatigue and potential failure.

Hickory is the gold standard, offering the best combination of strength, toughness (impact resistance), and shock absorption. Ash is a very good second choice with similar properties.

Diving Deeper into Axe Handle Wood Selection

An axe handle must endure extreme forces. It needs to be strong enough to handle the swing, tough enough to survive repeated impacts (including occasional misses or overstrikes), and resilient enough to absorb shock without shattering or excessively tiring the user. Only a few wood species consistently meet these demanding criteria.

Essential Properties

• Toughness: The absolute key property. Resistance to fracturing under sudden impact.
• Strength: Ability to withstand bending forces during the swing and impact.
• Shock Absorption: Ability to dampen vibrations. Related to the wood's flexibility and internal structure.
• Grain Structure: Straight grain running parallel to the handle length is critical for strength.

Hickory: The Champion

• Why it Excels: Hickory, particularly Shagbark or Shellbark Hickory, possesses an exceptional combination of these properties. Its long, dense, interlocking fibers make it incredibly tough and resistant to splitting. It has high bending strength and excellent shock absorption capabilities, making it feel relatively comfortable despite the forces involved.
• Grain Importance: Selecting Hickory with straight grain, properly oriented (growth rings vertical in the eye), is crucial to leverage its full potential. Grain run-out drastically reduces its strength.

Ash: The Reliable Contender

• Why it's Good: White Ash is also strong, tough, and shock-absorbent. It was the traditional choice in Europe (as used by Vikings) where Hickory wasn't native. High-quality Ash makes an excellent axe handle.
• Comparison to Hickory: Generally considered slightly less tough than prime Hickory, meaning it might be slightly more prone to fracturing under the most extreme impacts or overstrikes. It's often a bit lighter than Hickory.
• Grain Importance: Just as critical as with Hickory. Straight, parallel grain is essential.

Unsuitable Woods

• Oak: Strong but too stiff/brittle, poor shock absorption. Prone to fracturing under impact.
• Maple: Very hard but also too stiff and lacks the toughness of Hickory/Ash.
• Softwoods (Pine, Fir): Completely inadequate strength and toughness. Will break easily.
• Exotic Hardwoods: While some might be strong or hard, they often lack the specific toughness profile needed, can be too heavy, or prohibitively expensive. Their performance under impact stress is often less predictable than Hickory or Ash.

Wood Property Comparison for Axe Handles

For the safety-critical application of an axe handle, choosing high-quality, straight-grained Hickory or Ash is paramount. There are no truly comparable substitutes among common wood species.

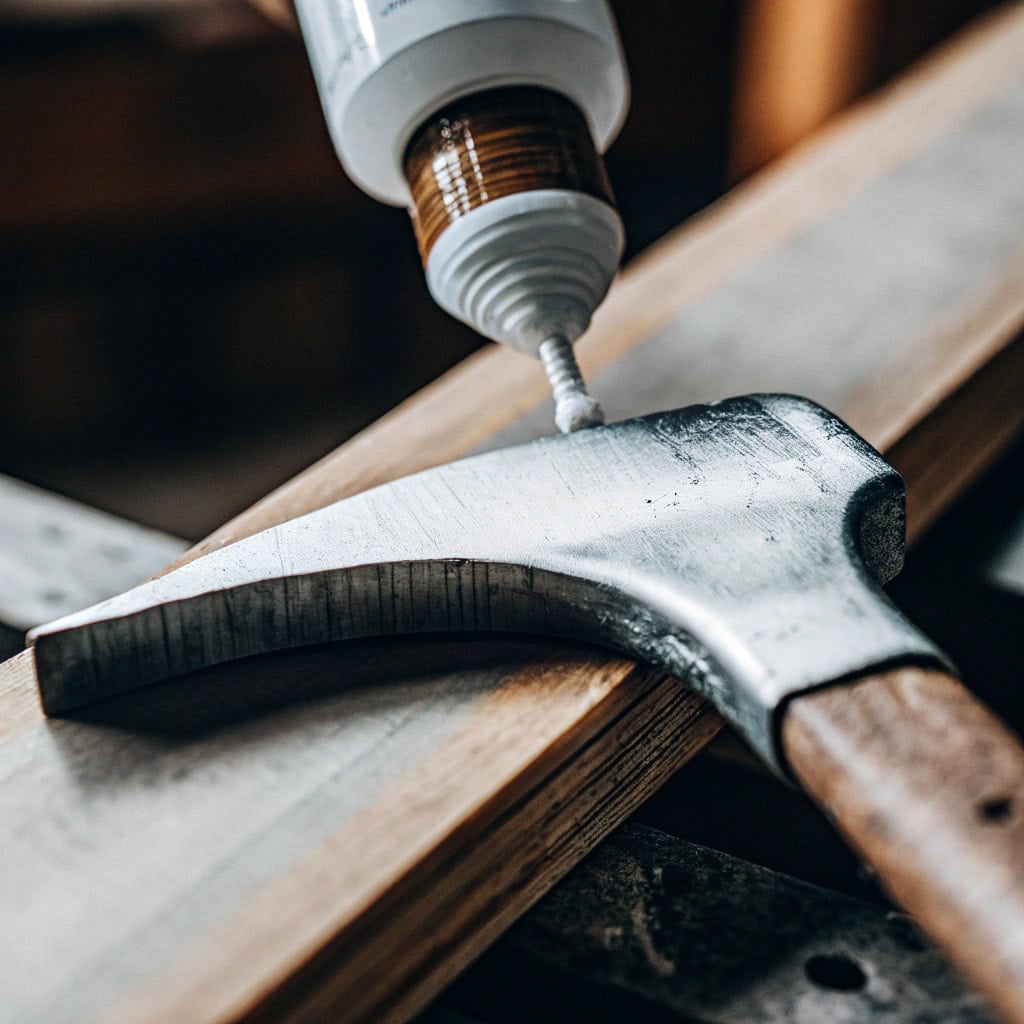

What is the Best Glue for Axe Handles?

Thinking glue is the primary way to secure an axe head? While sometimes used, relying solely on glue is unsafe; the mechanical fit and wedges provide the essential security.

Traditional axe hanging relies on mechanical fit and wedges, not glue. However, some use wood glue on the wooden wedge or epoxy as a supplemental measure, but it's not essential if properly wedged.

Diving Deeper into the Role of Glue in Axe Hanging

There's often debate among axe enthusiasts and makers about whether glue should be used when hanging an axe head. The traditional and most reliable method relies entirely on a precise mechanical fit and the expansion pressure created by wedges.

The Primary Securing Method: Wedges

• Mechanism: A well-fitted handle is driven into the eye. A wooden wedge is driven into the kerf (slot) at the top of the handle, expanding the wood outwards. Metal wedges are often added perpendicular to the wood wedge to provide further outward pressure, especially towards the edges of the eye.
• Result: This creates an incredibly tight mechanical lock, pressing the wood firmly against all surfaces of the eye. The friction and pressure hold the head securely. This method has been proven effective for centuries.

The Role of Wood Glue (on the Wooden Wedge)

• Common Practice: Many experienced axe hangers apply standard wood glue (like PVA glue, e.g., Titebond II or III) to the wooden wedge and inside the kerf before driving the wedge.
• Purpose:
• Lubrication: The wet glue can act as a lubricant, potentially allowing the wedge to be driven slightly deeper for a tighter initial fit.
• Filling Small Gaps: The glue fills any tiny remaining voids between the wedge and the handle wood inside the kerf.
• Bonding Wedge: It glues the wedge itself firmly into the handle kerf, preventing it from potentially backing out over time due to vibration (though this is unlikely with a properly driven wedge).
• Is it Necessary? No. A properly fitted and driven wedge system holds securely without glue. Glue is considered by many as an optional enhancement or "belt and suspenders" approach. It does not primarily hold the axe head on; the wedges do.

Using Epoxy

• Less Common Practice: Some people advocate using epoxy resin instead of, or in addition to, wedges. This usually involves coating the handle haft and inside the eye with epoxy before assembly.
• Potential Pros: Epoxy fills all gaps completely, creates a very strong bond, and effectively seals the wood inside the eye against moisture.
• Potential Cons:
• Difficult Removal: Makes future handle replacement extremely difficult, as the epoxy bonds the head very permanently.
• Messy Application: Can be messy to apply correctly.
• Potential for Failure: While strong, epoxy can become brittle over time or might not bond well if surfaces aren't perfectly clean. It doesn't provide the same mechanical expansion pressure as wedges.
• Not Traditional: Deviates from the proven mechanical wedging method.
• General View: Most traditionalists and many manufacturers avoid relying solely on epoxy for axe heads due to removal difficulties and the proven reliability of wedges. It might be considered for specific situations or smaller tools, but wedges remain standard for axes.

Glue Use Summary

While wood glue on the wedge is a common and generally harmless addition, the core security of a properly hung axe comes from the precise fit and the expansion force of the driven wedges. Relying on glue alone is not recommended.

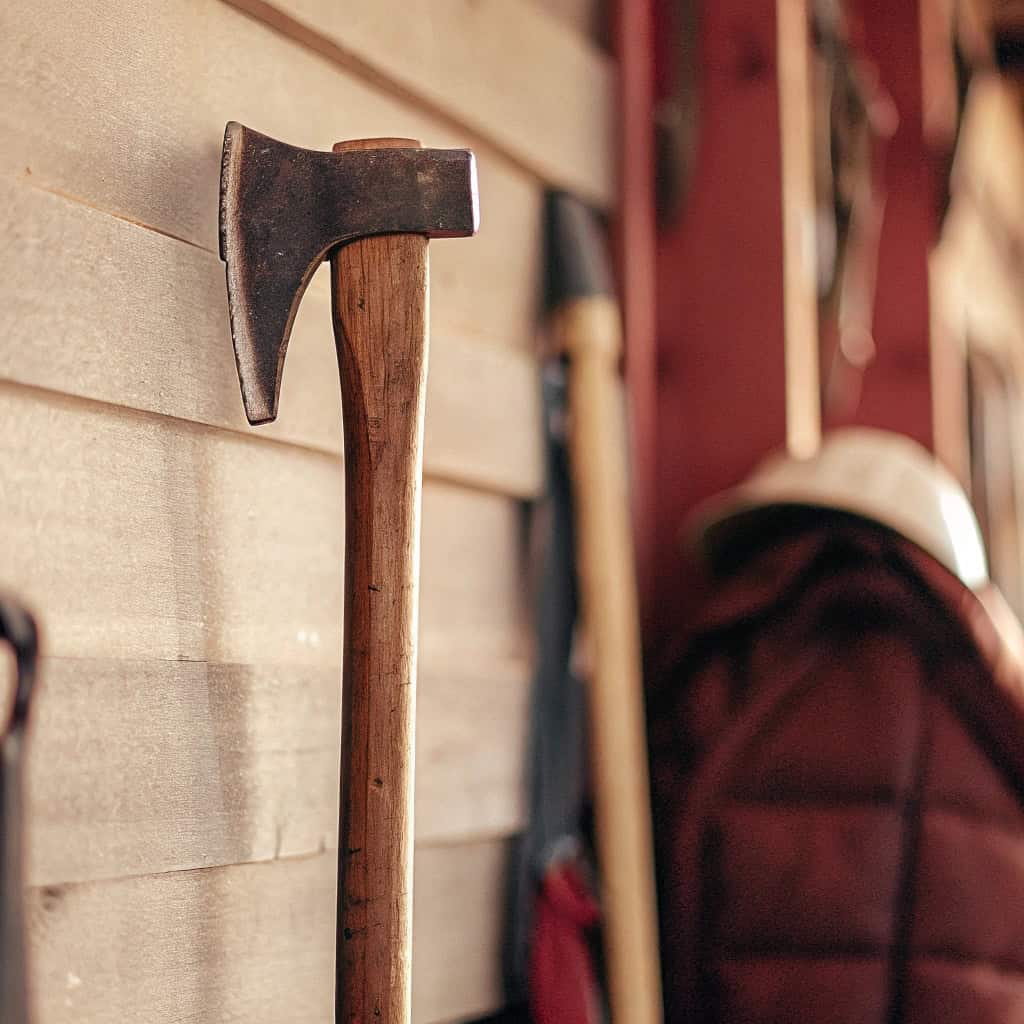

How Do You Rehang an Axe?

Need to replace that broken axe handle and bring your tool back to life? Rehanging an axe involves removing the old handle, fitting the new one precisely, and securing it safely with wedges.

Rehanging involves removing the old handle stub and wedges, carefully shaping the new handle to fit the eye snugly, driving the head on, inserting wood and metal wedges securely, and trimming the excess.

Diving Deeper into the Complete Rehanging Process

"Rehanging" refers to the entire process of replacing an old or broken axe handle with a new one. It combines the steps we've discussed into a complete workflow. Accuracy and safety are paramount throughout.

Step 1: Safety First

• Wear safety glasses throughout the process to protect from flying debris or metal shards.
• Wear gloves when handling tools and potentially sharp edges.
• Work in a well-lit area with a stable work surface.

Step 2: Remove the Old Handle and Wedges

• Secure the Axe Head: Clamp the head firmly in a vise, using wood blocks to protect it.
• Remove Metal Wedges: If present, try to pry them out with pliers or carefully drill beside them to loosen them. Sometimes driving them further in can paradoxically loosen things, but often drilling is required.
• Remove Wooden Wedge: Drill down into the wooden wedge to break it apart.
• Remove Handle Stub: Drill multiple holes into the remaining wood inside the eye. Use a punch or chisel and hammer to break out the weakened wood pieces. Ensure the eye is completely clear and clean. Check for any burrs or damage inside the eye that might interfere with fitting the new handle.

Step 3: Prepare and Fit the New Handle

• Select Quality Handle: Choose a Hickory or Ash handle with straight grain oriented correctly. Ensure the eye end is shaped appropriately for your axe head.
• Initial Fit: Check how the handle fits the eye. It should be slightly oversized.
• Shape the Haft: Carefully remove wood from the handle's top section using a rasp, file, or spokeshave until it fits snugly into the eye, leaving about 1/4" to 1/2" protruding. Test fit frequently and ensure alignment.

Step 4: Seat the Axe Head

• Drive Head On: Turn the axe upside down and strike the bottom knob of the handle firmly on a solid surface until the head is fully seated.

Step 5: Install Wedges

• Wooden Wedge: Apply wood glue (optional) into the kerf slot. Drive the hardwood wedge firmly into the kerf until fully seated.
• Metal Wedge(s): Drive one or two metal wedges perpendicular (or slightly angled) to the wooden wedge until secure.

Step 6: Trim and Finish

• Cut Flush: Saw off the excess handle wood and wedges flush with the top of the axe eye using a hacksaw.
• Smooth: File or sand the top surface smooth.
• Seal/Finish: Apply a penetrating oil finish (BLO, Tung oil) to the entire handle, paying special attention to sealing the exposed end grain at the top of the eye to prevent moisture ingress. Apply multiple coats as needed, wiping off excess.

Step 7: Final Check

• Inspect the fit carefully. Ensure the head is tight and there is no wobble. Check the grain orientation one last time.

Rehanging Process Summary

Rehanging an axe properly takes time and care, but results in a safe, reliable tool ready for years more service. It's a skill that connects you directly to the function and maintenance of your tools.

Conclusion

Install axe handles by carefully fitting Hickory/Ash handles, driving the head on securely, and using wood/metal wedges for a tight mechanical lock. Glue is optional; proper wedging is key.
