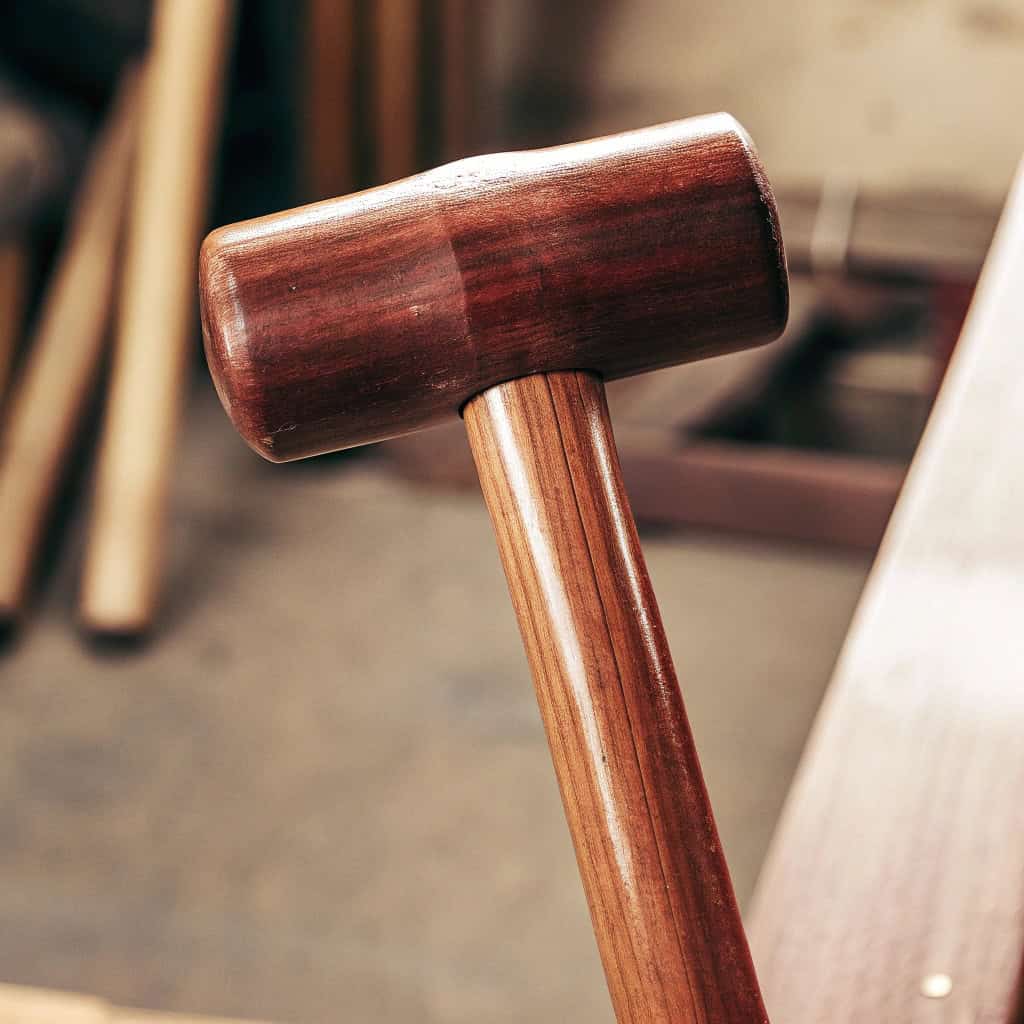

How Do You Choose the Right Replacement Wooden Handle for Your Hammer?

Is your hammer handle cracked, loose, or simply worn out? Using a hammer with a compromised handle is inefficient and dangerous, risking tool failure or injury. Let's fix that.

Choosing the right replacement involves matching the handle's eye size/shape to the hammer head, selecting quality wood (Hickory/Ash) with proper grain, picking the correct length, and ensuring a comfortable grip.

A hammer is only as good as its handle. The handle provides leverage, absorbs shock, and ensures control. Replacing a worn or broken wooden handle correctly restores the tool's safety and performance. As someone who has manufactured wooden handles and components for over ten years at JDW, I know the importance of getting the fit, material, and form right. Let's walk through the key considerations for selecting the perfect replacement.

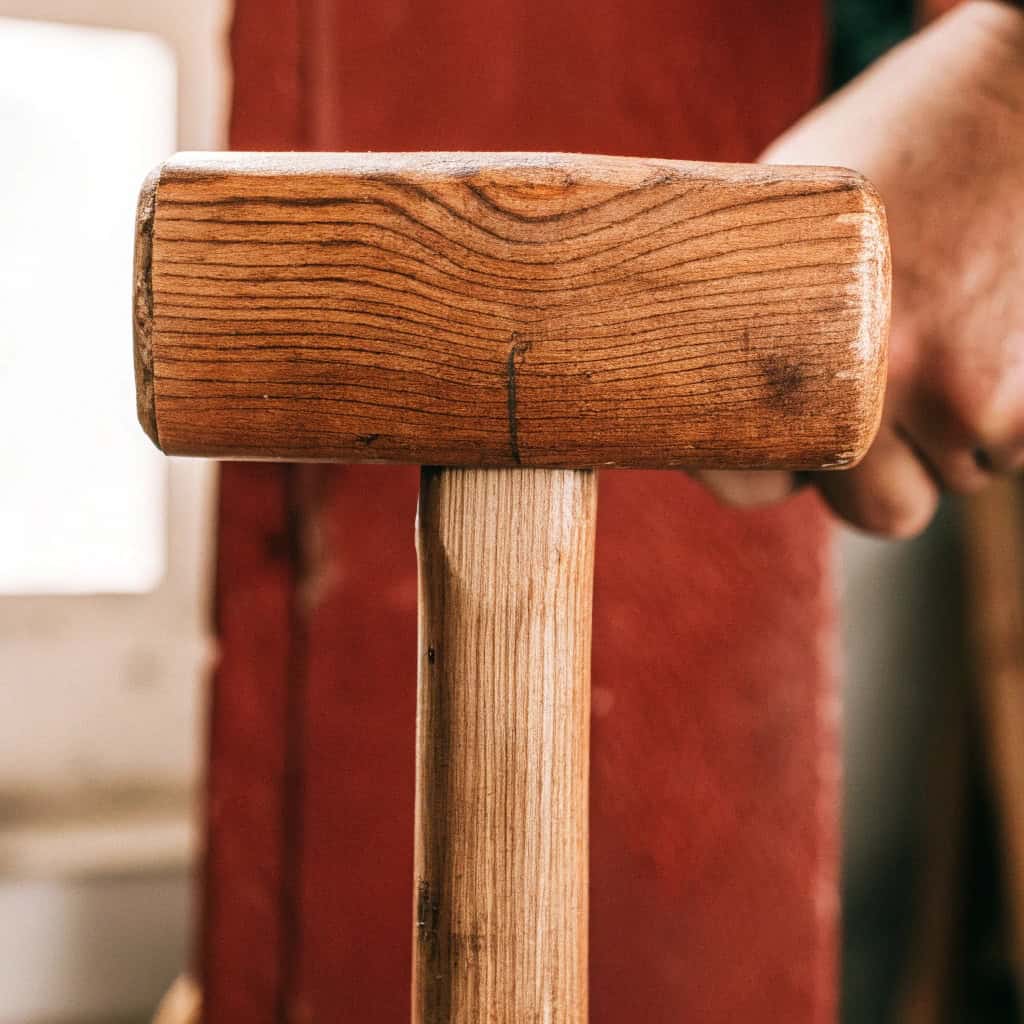

What is the Best Wood Handle for a Hammer?

Confused about which wood offers the best blend of strength and comfort for a hammer? Choosing incorrectly can lead to a handle that breaks easily or transmits painful vibrations.

Hickory is widely considered the best wood due to its exceptional strength, toughness, and shock absorption. Ash is a very good alternative, also offering durability and impact resistance.

Diving Deeper into Wood Selection

The wood used for a hammer handle needs to withstand significant, repetitive impact forces while minimizing the shock transferred to the user's hand and arm. Not all woods are up to this demanding task.

Key Properties Required

• Toughness: The ability to absorb shock and resist fracturing upon impact. This is arguably the most critical property for a striking tool handle.
• Strength: The ability to withstand bending forces without breaking.
• Shock Absorption (Resilience): The capacity to dampen vibrations. More flexible woods generally absorb shock better than very stiff ones.
• Durability: Resistance to wear and tear over time.
• Grain Structure: Straight grain running parallel to the handle length is essential for strength.

Why Hickory is King

Hickory consistently ranks as the top choice, especially in North America.

• Unmatched Toughness: It possesses an outstanding ability to absorb impact without splitting or breaking, thanks to its long, interlocking fibers.
• Excellent Shock Absorption: It naturally dampens vibration effectively, reducing user fatigue and discomfort.
• Proven Track Record: It has been the preferred material for high-impact tool handles (axes, hammers, sledgehammers) for generations due to its reliability.

Ash: The Strong Runner-Up

Ash is another excellent hardwood frequently used for tool handles.

• Similar Properties: It shares many desirable traits with Hickory, including high strength, good toughness, and effective shock absorption.
• Weight: Ash is typically slightly lighter than Hickory, which some users might prefer.
• Availability: In some regions (like Europe), Ash might be more readily available or cost-effective than Hickory.

The Importance of Grain Orientation

This cannot be overstated for either Hickory or Ash.

• Correct Alignment: The wood grain must run parallel to the length of the handle. When viewing the end grain (top of the handle where it meets the head), the growth rings should be oriented vertically, perpendicular to the striking face of the hammer.
• Danger of Run-out: Grain that runs diagonally across the handle creates a severe weak point that is highly prone to breaking under impact. Always inspect replacement handles carefully for straight grain alignment.

Wood Comparison for Hammer Handles

While other hardwoods might be strong, they generally lack the specific combination of toughness and shock absorption that makes Hickory and Ash ideal for hammer handles. Investing in a handle made from quality, straight-grained Hickory or Ash is crucial for safety and performance.

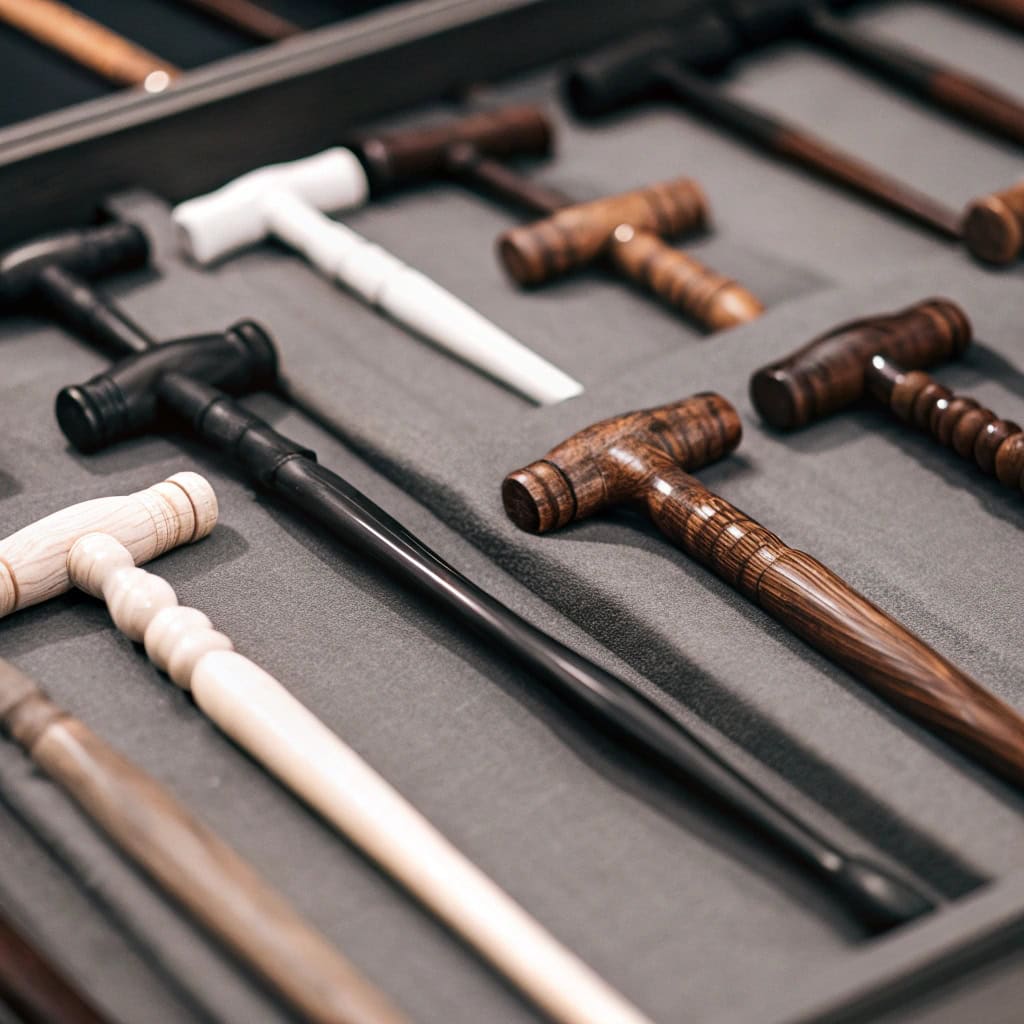

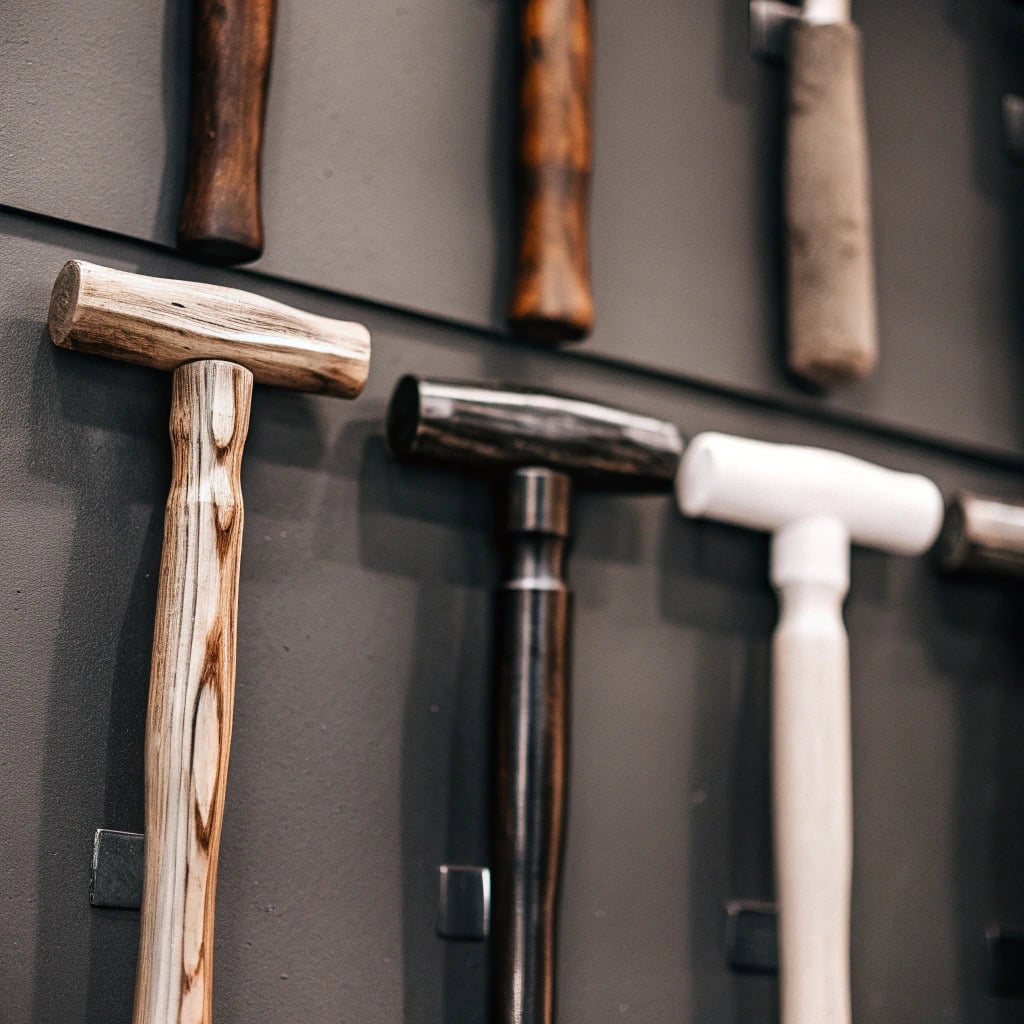

What are the Different Types of Hammer Handles?

Think all hammer handles are the same shape? Different materials and designs exist, offering trade-offs between comfort, durability, and vibration control, impacting your work.

The main types are Wood (Hickory/Ash, best comfort/shock absorption), Fiberglass (durable, poor shock absorption), and Solid Steel (most durable, worst shock absorption). Each has pros and cons.

Diving Deeper into Handle Material Types

While this guide focuses on replacing wooden handles, understanding the common alternatives helps clarify why wood is often preferred for certain aspects, and where other materials might excel.

1. Wood Handles

• Material: Typically Hickory or Ash, selected for specific properties.
• Pros:
• Best Shock Absorption: Naturally dampens vibration, leading to significantly less user fatigue and discomfort, especially during prolonged use.
• Comfortable Grip: Provides a natural, secure feel, often preferred by traditionalists. Can be shaped ergonomically. Oil finishes enhance grip.
• Replaceable: Allows replacement if damaged, preserving the hammer head.
• Good Balance: Often provides a balanced feel preferred by many craftspeople.
• Cons:
• Can Break: Susceptible to damage from overstrikes or misuse. Poor grain orientation is a major risk factor.
• Affected by Environment: Wood can shrink or swell with humidity changes, potentially loosening the head fit over time if not properly maintained or fitted.

2. Fiberglass Handles

• Material: A composite core, usually covered with a rubber or plastic grip.
• Pros:
• Very Durable: Highly resistant to breaking from impact and overstrikes. Unaffected by moisture or rot.
• Low Maintenance: Requires little care.
• Cons:
• Poor Shock Absorption: Transmits significantly more vibration to the user compared to wood. Can be very uncomfortable and fatiguing for repetitive tasks.
• Grip Issues: Relies on the synthetic over-grip, which can wear out, become slippery, or detach over time. Less comfortable feel for some.
• Not Replaceable: If the core breaks (rare) or the grip fails, the hammer is usually discarded.

3. Solid Steel Handles

• Material: Often forged as one piece with the hammer head, with a synthetic grip applied.
• Pros:
• Maximum Durability: Virtually indestructible handle shaft, ideal for heavy demolition or extreme conditions.
• Maximum Rigidity: No flex, maximum power transfer (though this also means maximum shock transfer).
• Cons:
• Worst Shock Absorption: Transmits the most vibration, making it unsuitable for most users for anything other than occasional, heavy-duty tasks. High risk of user fatigue and strain.
• Heavy: Adds significant weight compared to wood or fiberglass.
• Grip Dependence: Entirely reliant on the synthetic over-grip for comfort and slip resistance.
• Conducts Temperature: Feels very cold in winter.

Handle Material Feature Comparison

The "best" material depends on the user's priority. For comfort during regular use, wood is superior. For maximum durability against abuse, steel or fiberglass are tougher, but with a significant comfort penalty.

How Long Should a Hammer Handle Be?

Unsure if handle length matters for your hammer? Using a handle that's too short reduces leverage, while one that's too long can feel awkward and unbalanced.

Handle length depends on the hammer type and intended use. Claw hammers often have 12-16", framing hammers 16-22"+, ball-peen 10-16", and sledgehammers 24-36". Choose based on leverage vs. control needs.

Diving Deeper into Hammer Handle Lengths

The length of the handle significantly affects the hammer's balance, the leverage you can generate, and the control you have over the strike. There's no single "standard" length; it's tailored to the hammer's purpose.

Factors Influencing Handle Length

• Leverage and Power: Longer handles allow for a wider swing arc and greater head speed, generating more striking force. This is crucial for tasks like driving large nails (framing) or breaking concrete (sledgehammer).
• Control and Precision: Shorter handles allow for more controlled, precise strikes. They are better for tasks requiring accuracy over brute force, like tapping chisels, light assembly work, or driving smaller nails.
• Balance: The handle length contributes to the overall balance of the hammer. A well-balanced hammer feels comfortable and reduces fatigue. The ideal balance point varies with head weight and handle length/shape.
• User Size and Strength: While less critical than the task, very tall users might find extremely short handles awkward, and vice-versa. However, task-appropriateness usually dictates length more than user height.

Typical Lengths for Common Hammer Types

• Claw Hammers (General Purpose): Typically range from 12 to 16 inches. Shorter lengths (12-13") offer more control for general DIY tasks, while longer ones (14-16") provide a bit more driving power. 16 inches is a very common standard length.
• Framing Hammers: Designed for driving large nails quickly in construction. They have longer handles, usually from 16 inches up to 22 inches or even longer, to maximize leverage and striking power.
• Ball-Peen Hammers: Used for metalworking (shaping metal, driving punches). Handle lengths typically range from 10 to 16 inches, depending on the head weight. Control is often prioritized.
• Sledgehammers: Used for heavy demolition or driving stakes. Require maximum force, so handles are long, typically 24 to 36 inches. Longer handles require a two-handed swing.
• Tack Hammers/Upholstery Hammers: Very light hammers for small tacks. Have short, often slender handles (e.g., 10-12 inches) for delicate control.

Choosing a Replacement Length

• Match the Original (Usually): The safest bet is often to replace the handle with one of the same length as the original, assuming it felt appropriate for the hammer head and your tasks.
• Consider Your Use: If you primarily use a claw hammer for heavy work, you might opt for a 16" handle. If it's mostly for light tasks requiring control, a 13-14" handle might feel better. If replacing a framing hammer handle, stick to the longer lengths typical for that type.

Handle Length Guideline

Selecting the length appropriate for the hammer type and your primary tasks ensures the tool performs efficiently and feels balanced in your hand.

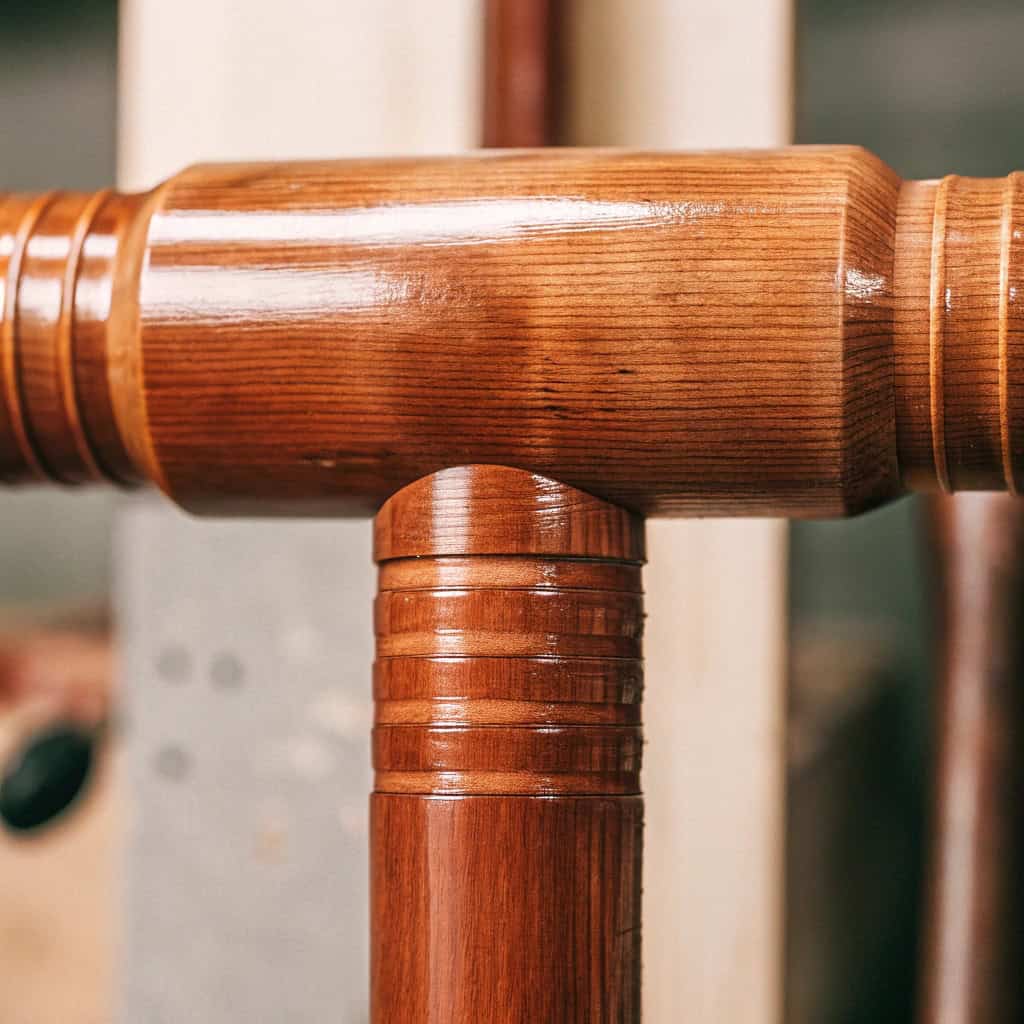

What is the Best Finish for a Wood Hammer Handle?

Want a secure grip and protected handle, but unsure what finish to use? Applying varnish or leaving wood bare can lead to slippery grips or rapid deterioration from moisture and dirt.

A penetrating oil finish, like Boiled Linseed Oil (BLO) or Tung oil, is generally best. It protects the wood, maintains a natural feel for excellent grip, and is easily reapplied.

Diving Deeper into Hammer Handle Finishes

The finish on a wooden hammer handle needs to strike a balance between protecting the wood and providing a secure, comfortable grip. Unlike furniture finishes where maximum surface protection might be key, tool handles prioritize feel and safety.

Penetrating Oil Finishes (Recommended)

• Examples: Boiled Linseed Oil (BLO), Tung Oil, specialized tool handle oil blends.
• How They Work: These oils soak into the wood fibers and harden (polymerize) within the wood, rather than forming a thick film on the surface.
• Advantages:
• Superior Grip: This is the main benefit. Oil finishes maintain the natural texture of the wood, providing a secure grip that doesn't become slippery when hands are sweaty or slightly oily.
• Comfortable Feel: Feels natural and warm in the hand.
• Good Protection: Offers decent protection against moisture absorption and dirt ingress by sealing the wood pores from within.
• Easy Application & Repair: Simple to apply with a rag. Scratches, wear, or dryness can be easily remedied by cleaning the handle and reapplying more oil.
• Disadvantages:
• Less Surface Abrasion Resistance: Doesn't protect against heavy scratches or dents as well as a hard film finish.
• Requires Periodic Reapplication: Needs occasional re-oiling (e.g., once or twice a year, or when it feels dry) to maintain protection.
• Safety Note: Always handle rags soaked with polymerizing oils (like BLO or Tung oil) carefully. Lay them flat to dry completely before disposal, as bunched-up rags can spontaneously combust.

Film Finishes (Varnish, Polyurethane, Lacquer) - Generally Not Recommended

• How They Work: Form a hard, protective layer on the surface of the wood.
• Advantages:
• Excellent Surface Protection: Highly resistant to scratches, moisture, and dirt.
• Low Maintenance: Don't require reapplication.
• Disadvantages:
• Poor Grip: This is the critical flaw for tool handles. Film finishes tend to be smooth and can become very slippery, especially with sweaty hands, increasing the risk of the hammer slipping during a swing.
• Difficult Repair: If the film gets chipped or scratched (which is likely on a tool handle), it's hard to repair seamlessly. Moisture can get under the damaged film.
• Can Feel Unnatural/Cold: Doesn't have the warm, natural feel of oiled wood.

No Finish (Bare Wood)

• Advantages: Maximum natural grip initially.
• Disadvantages: Offers no protection. Wood quickly absorbs moisture, dirt, and oils from hands, leading to discoloration, potential swelling/shrinking (loosening the head), and faster deterioration or splintering. Not recommended.

Finish Comparison for Hammer Handles

For safety and comfort, a penetrating oil finish is the clear winner for wooden hammer handles, providing the best balance of grip and protection. This is the type of finish we'd typically recommend or apply at JDW for tool handle components.

Conclusion

Choose replacement hammer handles made of Hickory or Ash with straight grain. Match the eye size, select the appropriate length for the hammer type, and use an oil finish for best grip.
